Core Content: Ceramic Tubes , Special-Shaped Wear-Resistant Parts , High-Alumina Ceramic Linings
Product Structure:
| Category | HC90 | HC92 | HC95 | HCT95 | HC99 | HC-ZTA | ZrO2 |
| Al2O3 | ≥90% | ≥92% | ≥95% | ≥ 95% | ≥ 99% | ≥75% | / |
| ZrO2 | / | / | / | / | / | ≥21% | ≥95% |
| Density | ＞3.50g/ cm3 | ＞3.60g/cm3 | ＞3.65g/cm3 | ＞3.70g/cm3 | ＞3.83g/cm3 | ＞4.10g/cm3 | ＞5.90g/cm3 |
| HV 20 | ≥900 | ≥950 | ≥1000 | ≥1100 | ≥1200 | ≥1350 | ≥1100 |
| Rock Hardness HRA | ≥80 | ≥82 | ≥85 | ≥88 | ≥90 | ≥90 | ≥88 |
| Bending Strength MPa | ≥180 | ≥220 | ≥250 | ≥300 | ≥330 | ≥400 | ≥800 |
| Compression strength MPa | ≥970 | ≥1050 | ≥1300 | ≥1600 | ≥1800 | ≥2000 | / |
| Fracture Toughness KIc MPam 1/2 | ≥3.5 | ≥3.7 | ≥3.8 | ≥4.0 | ≥4.2 | ≥4.5 | ≥7.0 |
| Wear Volume | ≤0.28 cm3 | ≤0.25cm3 | ≤0.20cm3 | ≤0.15cm3 | ≤0.10 cm3 | ≤0.05cm3 | ≤0.02cm3 |
Examples of Use

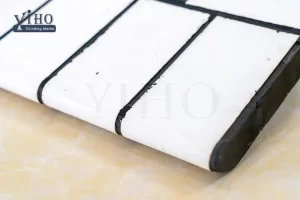

Notes: We can make alumina wear tile according to your requirement.
Features
High hardness
Rockwell hardness of high alumina ceramics is up to HRA80-90 which is second only to diamond and far exceeds wear-resistant steel stainless
Excellent wear resistance
The wear resistance of high alumina ceramics is 266 times that of manganese steel and 171.5 times that of high chromium cast iron.According to our investigation & follow-up to the clients, the service life of equipment can be prolonged over 10 times under the same working conditions.
Corrosion resistance
High alumina ceramics are inorganic oxides with extremely stable molecular structure and no electrochemical corrosion, thus they can resist erosion of acid, alkali, salt solutions and organic Solvents.
Thermostability
Working temperature of high alumina ceramics can be as high as 1400℃.
Good self-lubricity
High alumina ceramics have the properties of self-lubricity and inadhesion, the roughness is only 1/6 that of steel pipes thus less flow Resistance.
Light weight
The density of high alumina ceramics is about 3.6g/cm3, which is only half that of steel, thus easy for construction and installation
Wear solutions we provide
This is a complex process.Our engineers understand wear problems and specify
solutions to meet your operational environment. Material properties,tolerances, flatness,attachment methods, and material costs are all considered in a wear s
Applications
• Chutes/Hoppers
• Classifier Cones
• Cyclone Separators
• Elbows
• Fan Housing & Blades
• Lined Piping
• Nozzles
• Wear Panels
Markets
• Coal-fired Power Generation
• Abrasive Material Handling
• Chemical Processing
• Food Processing
• Iron/Steel Manufacturing
• Mineral Processing
• Powder/Bulk Solids Conveying
• Pulp & Paper Manufacturing
